12864點陣液晶顯示測試程序（帶字庫）

文章出處：未知 人氣：發表時間：2018-07-16

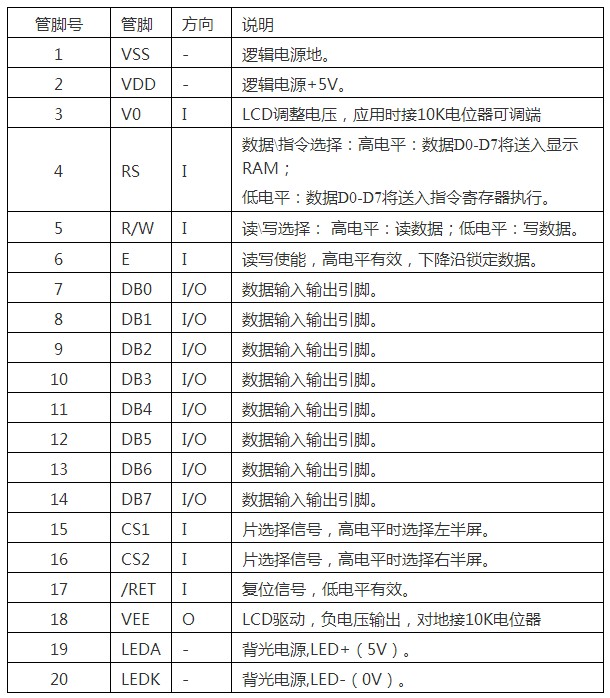

接口說明



1 12864-1


測試程序：

#include <reg52.h>



#define uint  unsigned int

#define uchar unsigned char

#define x1    0x80

#define x2    0x88

#define y     0x80

#define comm  0

#define dat   1



sbit rs = P1^1;   //H=data; L=command;

sbit rw = P1^2;   //H=read; L=write;

sbit  e = P1^3;   //input enable;

sbit psb= P1^4;   //H=并口; L=串口;

sbit rst= P1^5;   //Reset Signal 低電平有效



sbit busy=P2^7;   //lcd busy bit



void wr_lcd (uchar dat_comm,uchar content);

void chk_busy (void);

void delay (uint us);



uchar code tab1[]={

"    床前明月光, "

"  疑是地上霜,   "

"舉頭望明月,     "

"低頭思故鄉。    "

};



uchar code tab31[]={

"你的選擇"

"沒有錯  "

};

uchar code tab32[]={

/*--  調入了一幅圖像：D:\Backup\桌面\未命名1.bmp  --*/

/*--  寬度x高度=128x32  --*/

0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

0xFF,0x01,0xC0,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

0xFF,0x01,0xE0,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

0xFF,0x01,0xF8,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

0xFF,0x01,0xFC,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x0F,0x04,0x06,0x06,0xFF,0xFF,

0xFF,0x01,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x0F,0x04,0x04,0x02,0xFF,0xFF,

0xFF,0x81,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xCF,0xE4,0xE4,0xF3,0xFF,0xFF,

0xFF,0xF1,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xCF,0xE4,0xE4,0xF3,0xFF,0xFF,

0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xCF,0xE4,0xE4,0xF3,0xFF,0xFF,

0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xCF,0xE4,0xE4,0xF3,0xFF,0xFF,

0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xE7,0xE4,0xE4,0xF3,0xFF,0xFF,

0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xE7,0x04,0x04,0x83,0xFF,0xFF,

0xFF,0xFF,0xFF,0xFF,0xF8,0xFF,0xFF,0xFF,0xFF,0xFF,0xE7,0x04,0x06,0x07,0xFF,0xFF,

0xFF,0xFF,0xFF,0xFF,0xF8,0xFF,0xFF,0xFF,0xFF,0xFF,0x07,0x24,0xE6,0x3F,0xFF,0xFF,

0xFF,0xFD,0xFF,0xFF,0xFC,0xFF,0xFF,0xFF,0xFF,0xFF,0x07,0x64,0xE4,0x3F,0xFF,0xFF,

0xFF,0x03,0xF7,0xFF,0xFE,0xFF,0xFF,0xFF,0xFF,0xFF,0xE7,0xE4,0xE4,0x3F,0xFF,0xFF,

0xFF,0x07,0xF0,0xFF,0xFE,0xFF,0xFF,0xFF,0xFF,0xFF,0xE7,0xE4,0xE4,0x3F,0xFF,0xFF,

0xFF,0x07,0xF0,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xF3,0xE4,0xE4,0x3F,0xFF,0xFF,

0xFF,0x0F,0xF0,0xFF,0xFB,0xFF,0xFF,0xFF,0xFF,0xFF,0xF3,0xE4,0x04,0x02,0xFF,0xFF,

0xFF,0x1F,0xF0,0xFF,0xF9,0xFF,0xFF,0xFF,0xFF,0xFF,0xF3,0xE4,0x04,0x82,0xFF,0xFF,

0xFF,0x1F,0xF0,0xFF,0xF9,0xFF,0xFF,0xFF,0xFF,0xFF,0xF3,0xFC,0xFF,0xFF,0xFF,0xFF,

0xFF,0x3D,0xF0,0xFF,0xFB,0xFF,0xFF,0xFF,0xFF,0xFF,0xF3,0x00,0x00,0x00,0xFF,0xFF,

0xFF,0x3D,0xF0,0xFF,0xFB,0xFF,0xFF,0xFF,0xFF,0xFF,0xF3,0x00,0x00,0x00,0xFF,0xFF,

0xFF,0x79,0xF8,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF





};



uchar code tab5[]={

/*--  調入了一幅圖像：D:\Backup\桌面\未命名.bmp  --*/

/*--  寬度x高度=128x64  --*/

0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

0xFF,0x01,0xC0,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

0xFF,0x01,0xE0,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

0xFF,0x01,0xF8,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

0xFF,0x01,0xFC,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x0F,0x04,0x06,0x06,0xFF,0xFF,

0xFF,0x01,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x0F,0x04,0x04,0x02,0xFF,0xFF,

0xFF,0x81,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xCF,0xE4,0xE4,0xF3,0xFF,0xFF,

0xFF,0xF1,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xCF,0xE4,0xE4,0xF3,0xFF,0xFF,

0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xCF,0xE4,0xE4,0xF3,0xFF,0xFF,

0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xCF,0xE4,0xE4,0xF3,0xFF,0xFF,

0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xE7,0xE4,0xE4,0xF3,0xFF,0xFF,

0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xE7,0x04,0x04,0x83,0xFF,0xFF,

0xFF,0xFF,0xFF,0xFF,0xF8,0xFF,0xFF,0xFF,0xFF,0xFF,0xE7,0x04,0x06,0x07,0xFF,0xFF,

0xFF,0xFF,0xFF,0xFF,0xF8,0xFF,0xFF,0xFF,0xFF,0xFF,0x07,0x24,0xE6,0x3F,0xFF,0xFF,

0xFF,0xFD,0xFF,0xFF,0xFC,0xFF,0xFF,0xFF,0xFF,0xFF,0x07,0x64,0xE4,0x3F,0xFF,0xFF,

0xFF,0x03,0xF7,0xFF,0xFE,0xFF,0xFF,0xFF,0xFF,0xFF,0xE7,0xE4,0xE4,0x3F,0xFF,0xFF,

0xFF,0x07,0xF0,0xFF,0xFE,0xFF,0xFF,0xFF,0xFF,0xFF,0xE7,0xE4,0xE4,0x3F,0xFF,0xFF,

0xFF,0x07,0xF0,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xF3,0xE4,0xE4,0x3F,0xFF,0xFF,

0xFF,0x0F,0xF0,0xFF,0xFB,0xFF,0xFF,0xFF,0xFF,0xFF,0xF3,0xE4,0x04,0x02,0xFF,0xFF,

0xFF,0x1F,0xF0,0xFF,0xF9,0xFF,0xFF,0xFF,0xFF,0xFF,0xF3,0xE4,0x04,0x82,0xFF,0xFF,

0xFF,0x1F,0xF0,0xFF,0xF9,0xFF,0xFF,0xFF,0xFF,0xFF,0xF3,0xFC,0xFF,0xFF,0xFF,0xFF,

0xFF,0x3D,0xF0,0xFF,0xFB,0xFF,0xFF,0xFF,0xFF,0xFF,0xF3,0x00,0x00,0x00,0xFF,0xFF,

0xFF,0x3D,0xF0,0xFF,0xFB,0xFF,0xFF,0xFF,0xFF,0xFF,0xF3,0x00,0x00,0x00,0xFF,0xFF,

0xFF,0x79,0xF8,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

0xFF,0x79,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

0xFF,0xF9,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

0xFF,0xFB,0xFE,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00

};





/*------------------初始化-----------------*/

void init_lcd (void)

{

  rst=1;

  psb=1;

  wr_lcd (comm,0x30);  /*30---基本指令動作*/

  wr_lcd (comm,0x01);  /*清屏，地址指針指向00H*/

  wr_lcd (comm,0x06);  /*光標的移動方向*/

  wr_lcd (comm,0x0c);  /*開顯示，關游標*/

}

/*---------------顯示漢字或字符----------------*/

void chn_disp (uchar code *chn)

{

  uchar i,j;

  wr_lcd (comm,0x30);

  wr_lcd (comm,0x80);

  for (j=0;j<4;j++)

  {

    for (i=0;i<16;i++)

    wr_lcd (dat,chn[j*16+i]);

  }

}

/*-----------上半屏顯示漢字或字符------------*/

void chn_disp1 (uchar code *chn)

{

  uchar i,j;

  wr_lcd (comm,0x30);

  wr_lcd (comm,0x80);

  j=0;

  for (i=0;i<16;i++)

  wr_lcd (dat,chn[j*16+i]);

  wr_lcd (comm,0x90);

  j=1;

  for (i=0;i<16;i++)

  wr_lcd (dat,chn[j*16+i]);

}

/*----------------顯示圖形-----------------*/

void img_disp (uchar code *img)

{

  uchar i,j;

  for(j=0;j<32;j++)

  {

    for(i=0;i<8;i++)

    {

      wr_lcd (comm,0x34);

      wr_lcd (comm,y+j);

      wr_lcd (comm,x1+i);

      wr_lcd (comm,0x30);

      wr_lcd (dat,img[j*16+i*2]);

      wr_lcd (dat,img[j*16+i*2+1]);

    }

  }

  for(j=32;j<64;j++)

  {

    for(i=0;i<8;i++)

    {

      wr_lcd (comm,0x34);

      wr_lcd (comm,y+j-32);

      wr_lcd (comm,x2+i);

      wr_lcd (comm,0x30);

      wr_lcd (dat,img[j*16+i*2]);

      wr_lcd (dat,img[j*16+i*2+1]);

    }

  }

  wr_lcd (comm,0x36);

}

/*-------------下半屏顯示圖形--------------*/

void img_disp1 (uchar code *img)

{

  uchar i,j;

  for(j=0;j<32;j++)

  {

    for(i=0;i<8;i++)

    {

      wr_lcd (comm,0x34);

      wr_lcd (comm,y+j);

      wr_lcd (comm,x2+i);

      wr_lcd (comm,0x30);

      wr_lcd (dat,img[j*16+i*2]);

      wr_lcd (dat,img[j*16+i*2+1]);

    }

  }

  wr_lcd (comm,0x36);

}

/*--------------顯示點陣----------------*/

void lat_disp (uchar data1,uchar data2)

{

  uchar i,j,k,x;

  x=x1;

  for(k=0;k<2;k++)

  {

    for(j=0;j<16;j++)

    {

      for(i=0;i<8;i++)

      {

        wr_lcd (comm,0x34);

        wr_lcd (comm,y+j*2);

        wr_lcd (comm,x+i);

        wr_lcd (comm,0x30);

        wr_lcd (dat,data1);

        wr_lcd (dat,data1);

      }

      for(i=0;i<8;i++)

      {

        wr_lcd (comm,0x34);

        wr_lcd (comm,y+j*2+1);

        wr_lcd (comm,x+i);

        wr_lcd (comm,0x30);

        wr_lcd (dat,data2);

        wr_lcd (dat,data2);

      }

    }

    x=x2;

  }

  wr_lcd (comm,0x36);

}

/*-----------------------------------------------*/

//當data1=0xff,data2=0xff時,在x0,y0處反白顯示16xl*yl.

void con_disp (uchar data1,uchar data2,uchar x0,uchar y0,uchar xl,uchar yl)

{

  uchar i,j;

  for(j=0;j<yl;j++)

  {

    for(i=0;i<xl;i++)

    {

      wr_lcd (comm,0x34);

      wr_lcd (comm,y0+j);

      wr_lcd (comm,x0+i);

      wr_lcd (comm,0x30);

      wr_lcd (dat,data1);

      wr_lcd (dat,data2);

    }

  }

  wr_lcd (comm,0x36);

}

/*--------------清DDRAM------------------*/

void clrram (void)

{

  wr_lcd (comm,0x30);

  wr_lcd (comm,0x01);

}

/*---------------------------------------*/

void wr_lcd (uchar dat_comm,uchar content)

{

  chk_busy ();

  if(dat_comm)

   {

    rs=1;   //data

    rw=0;   //write

   }

  else

   {

    rs=0;   //command

    rw=0;   //write

   }

  P2=content;   //output data or comm

  e=1;

  ;

  e=0;

}



void chk_busy (void)

{

  P2=0xff;

  rs=0;

  rw=1;

  e =1;

  while(busy==1);

  e =0;

}



void delay (uint us)   //delay time

{

  while(us--);

}

void delay1 (uint ms)

{

  uint i,j;

  for(i=0;i<ms;i++)

  for(j=0;j<15;j++)

  delay(1);

}

/*------------------主程序--------------------*/

void main ()

{

  SP=0x5f;

  init_lcd ();

  while (1)

  {

    lat_disp (0x00,0x00);

    chn_disp (tab1);

    con_disp (0xff,0xff,0x8c,0x80,2,16);

    delay1 (28000);

    clrram();

    lat_disp (0xcc,0xcc);

    delay1 (28000);

    lat_disp (0x00,0x00);

    chn_disp1 (tab31);

    img_disp1 (tab32);

    delay1 (28000);

    clrram();

    lat_disp (0xff,0x00);

    delay1 (28000);

    img_disp (tab5);

    delay1 (28000);

  }

}

12864相關資訊：

LCD12864電路接法

lcd12864中文顯示程序流程圖

lcd12864工作原理

上一篇：LCD12864電路接法 下一篇：lcd1602與lcd12864優缺點

最新資訊

• 2024-07-05 高亮液晶屏在工業和航空領域的應用
• 2024-07-05 低溫環境下工業液晶屏的性能差異分
• 2024-06-25 立煌的LH0255ZJ01條形屏的相關介紹
• 2024-06-14 高溫對工業液晶顯示屏封裝材料的影
• 2024-06-12 京東方MV238FHB-NG0的簡介
• 2024-06-12 深入探討寬屏分辨率的工作原理
• 2024-06-12 深入探討寬屏分辨率的工作原理
• 2024-06-06 如何選擇適合自己的寬屏觸摸屏產品
• 2024-06-06 極端環境挑戰下超寬溫液晶屏的應用
• 2024-06-05 條形屏是如何根據客戶的需求來進行

推薦產品

G150XNE-L03群創15寸IPS視角工業液晶屏

TM150TDSG70天馬15寸液晶模組 天馬15寸工

MV270QHM-N61 京東方27寸ADS常黑顯示液晶

TCG057VGLDFANN-GN02 京瓷5.7寸低溫液晶屏

LH140LX029A 立煌14寸半加固液晶顯示屏

（已停產）三菱5寸LED背光工業液晶屏

（已停產）三菱10.4寸超高亮度工控液

MV240QDM-N20 京東方24寸 分辨率2560*1600

• 友達液晶屏
• 京東方液晶屏
• 京瓷液晶屏
• 加固液晶屏顯示器
• 條形液晶屏顯示器
• 群創液晶屏
• 天馬液晶屏
• 奇美液晶屏
• 龍騰液晶屏
• 高亮液晶屏
• 長條液晶屏
• 組裝液晶屏

• 觸摸屏及控制器
• 控制板卡
• 線材

• 工業設備
• 醫療美容
• 車載交通
• 安防設備
• 軍工設備
• 智能家電
• 手持終端

• 公司動態
• 技術知識
• 常見問題
• 解決方案

• 公司簡介
• 公司榮譽
• 生產車間
• 合作伙伴
• 客戶見證
• 服務團隊
• 展會現場

• 聯系我們
